22-3A70

Part number:
22-3A70
OEM cross reference:
EO-6301-022-000A
Part description:
AIR BEARING TURBINE (VIII)
OEM REPLACEMENT
OEM EO-6301-022-000A
SERIES VB/SB 3
OEM BLACK

The 22-3A70 is an air bearing turbine used to drive paint atomizing bell cups at very high rotational speeds (on the order of 70,000 rpm).  Utilizing carbon bearing technology, the housing of the motor is constructed of high strength aircraft grade aluminum.  All other components are constructed of stainless steels or perflouroelastomeric materials.

TECHNICAL SPECS
Dimensions 124mm length x 82mm diameter
Weight 873 grams

EFC REPLACEMENT TURBINES

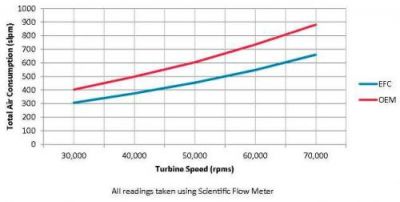

AIR CONSUMPTION COMPARISON
